The reliability and efficiency of water distribution networks depend not only on the quality of pipelines but also on the performance of the valves installed throughout the system.
Gate valves play an essential role in controlling water supply, isolating pipeline sections, facilitating maintenance operations, and ensuring safe network operation.
BIV, a Spanish manufacturer specializing in solutions for water network connection, control, and repair, offers a range of gate valves designed to meet the demanding requirements of modern water infrastructure.
With more than 25 years of experience in developing products for water networks, BIV combines technical expertise, product development, and practical engineering solutions to support water utilities and infrastructure contractors.
BIV Gate Valves – Designed for Reliable Network Operation
BIV gate valves are designed primarily for opening and closing water flow in distribution systems.
Unlike regulating valves, gate valves are generally intended to operate in either the fully open or fully closed position.
When fully open, their internal design allows water to pass through with relatively low hydraulic resistance. When closed, the resilient sealing element provides tight shut-off.
These characteristics make BIV gate valves suitable for municipal water distribution networks, industrial water systems, irrigation infrastructure, and other applications requiring dependable pipeline isolation.
Main Technical Features of BIV Gate Valves
- Ductile Iron Construction
BIV gate valves feature robust construction using ductile cast iron components.
According to BIV's technical catalogue, the body, bonnet, and gate are manufactured using ductile iron meeting the mechanical requirements of EN 1563.
Ductile iron provides an effective combination of mechanical strength, durability, and resistance to operational stresses.
This construction makes the valves suitable for demanding underground and above-ground water infrastructure applications.
- Resilient Seated Wedge

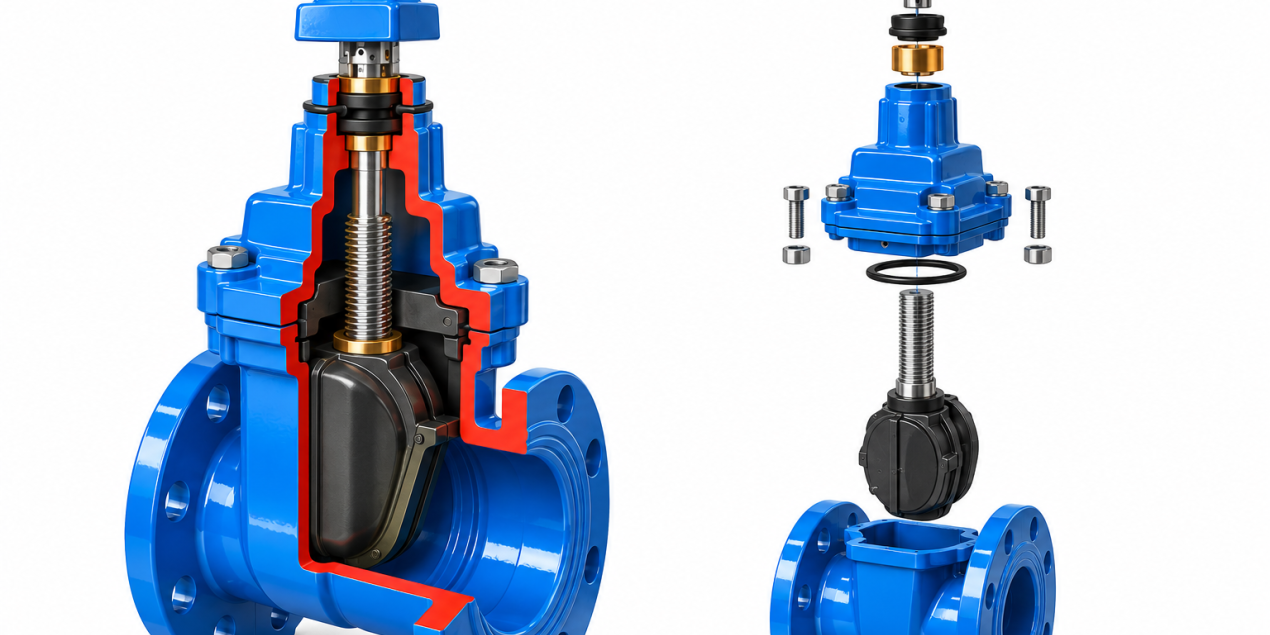

One of the key components of BIV gate valves is the resilient seated wedge.
The wedge incorporates an elastomeric sealing surface designed to ensure effective shut-off when the valve is fully closed.
The manufacturer's technical documentation identifies EPDM rubber components manufactured according to EN 681-1.
The resilient sealing system helps accommodate minor irregularities in the sealing surfaces and contributes to reliable closure.
- Non-Rising Stem Design
BIV gate valves are available with a non-rising stem configuration.
In this design, the stem rotates without moving vertically outside the valve body.
This offers practical advantages in installations where available space is limited, such as underground valve chambers and buried water distribution networks.
The configuration also supports operation through extension spindles and appropriate operating accessories.
- Corrosion Protection
Corrosion resistance is an important consideration for valves installed in underground environments, humid chambers, and water infrastructure systems.
Protective coatings help shield the metallic components from environmental exposure and contribute to extending their service life.
The coating specification, thickness, and applicable corrosion-resistance test results should be verified for the selected BIV valve model.
- Flanged Connections and Standardized Dimensions
BIV offers flanged gate valve configurations designed for integration into water distribution pipelines.
The manufacturer's catalogue identifies designs with flange dimensions according to EN 1092-2 and short and long face-to-face configurations.
These standardized dimensions simplify the integration of valves into new installations and the replacement of existing equipment.
Short Pattern F4 and Long Pattern F5 Gate Valves
BIV's product range includes two important configurations for flanged gate valves.
Configuration Main characteristics
Short pattern F4 Compact face-to-face dimensions, suitable for installations where space is limited
Long pattern F5 Extended face-to-face dimensions, suitable for systems designed around longer installation lengths
Both configurations serve the same fundamental purpose: reliable isolation of water flow.
The correct version must be selected according to pipeline design, available installation space, pressure requirements, and the dimensions of existing equipment.
The historical BIV catalogue lists F4 gate valves in sizes from DN50 to DN600 and F5 configurations up to DN300. The currently available size range should be confirmed against the latest product catalogue.
Compliance with European Technical Standards
Technical compliance is an essential factor when selecting valves for municipal and industrial water infrastructure.
BIV's published technical documentation references several important European standards:
- EN 1074-2: Valves for water supply – fitness for purpose requirements and appropriate verification tests for isolating valves.
- EN 1171: Industrial valves – cast iron gate valves.
- EN 1092-2: Flanges and their joints – circular flanges for pipes, valves, fittings, and accessories, cast iron flanges.
- EN 12266-1: Industrial valves – pressure testing, test procedures, and acceptance criteria.
- EN 681-1: Elastomeric seals – material requirements for pipe joint seals used in water and drainage applications.
These standards provide a technical framework for evaluating valve performance, dimensional compatibility, pressure resistance, and sealing reliability.
Compliance with individual standards must be confirmed for the specific valve model and configuration.
Quality Recognition and Product Approval
An important achievement for BIV is the approval of its gate valve range by Canal de Isabel II, one of Spain's major water management organizations.
In December 2020, BIV announced that its gate valves had obtained approval based on the technical specifications applicable to drinking water service connections.
The manufacturer also highlighted sanitary certification for materials in contact with drinking water and salt spray testing related to corrosion protection.
This recognition demonstrates the importance BIV places on technical verification, product quality, and compliance with demanding utility requirements.
However, approvals and certifications must always be checked for their current validity, product coverage, and applicability to the intended market.
Applications of BIV Gate Valves
BIV gate valves can be used in a wide range of water infrastructure projects.
Municipal water distribution networks: Isolating individual pipeline sections for maintenance, repair, or network expansion without interrupting the entire distribution system.
Water treatment facilities: Providing shut-off points for equipment maintenance and operational interventions.
Pumping stations: Isolating pumps and associated pipeline equipment when maintenance or replacement is required.
Irrigation networks: Controlling the availability of water in different sections of agricultural distribution systems.
Industrial water systems: Providing reliable shut-off functionality in industrial pipelines operating within the valve's specified pressure and temperature limits.
Why Choose BIV Gate Valves?
Selecting suitable isolation valves is an investment in the long-term reliability of water infrastructure.
BIV gate valves offer several practical advantages: durable ductile iron construction, resilient sealing technology, standardized flanged connections, and configurations suitable for different installation requirements.
The manufacturer's technical documentation also emphasizes low hydraulic resistance, effective shut-off, and testing in accordance with relevant European standards.
Tiendas achedosol
+1
For water utilities, these characteristics can contribute to reduced maintenance requirements, improved operational efficiency, and more effective management of water distribution systems.
BIV Gate Valves Available Through Cristal EcoSistem
At Cristal EcoSistem, we are committed to providing reliable, high-quality technical solutions for water supply infrastructure throughout Romania.
BIV gate valves form an important part of our portfolio of products for water distribution, pipeline control, and infrastructure modernization.
Our team supports water utilities, engineering companies, and infrastructure contractors in selecting suitable valves based on technical requirements, installation conditions, and project specifications.
Whether you are constructing a new distribution network, modernizing an existing pipeline, or replacing aging equipment, we can help you identify an appropriate solution.
Reliable water infrastructure begins with dependable components. Choose BIV gate valves through Cristal EcoSistem!
For technical information, product availability, and customized quotations, contact our team.
Cristal EcoSistem – Professional Solutions for Water Infrastructure.
